Redu-Panel

The dry renovation solution for wooden subfloors

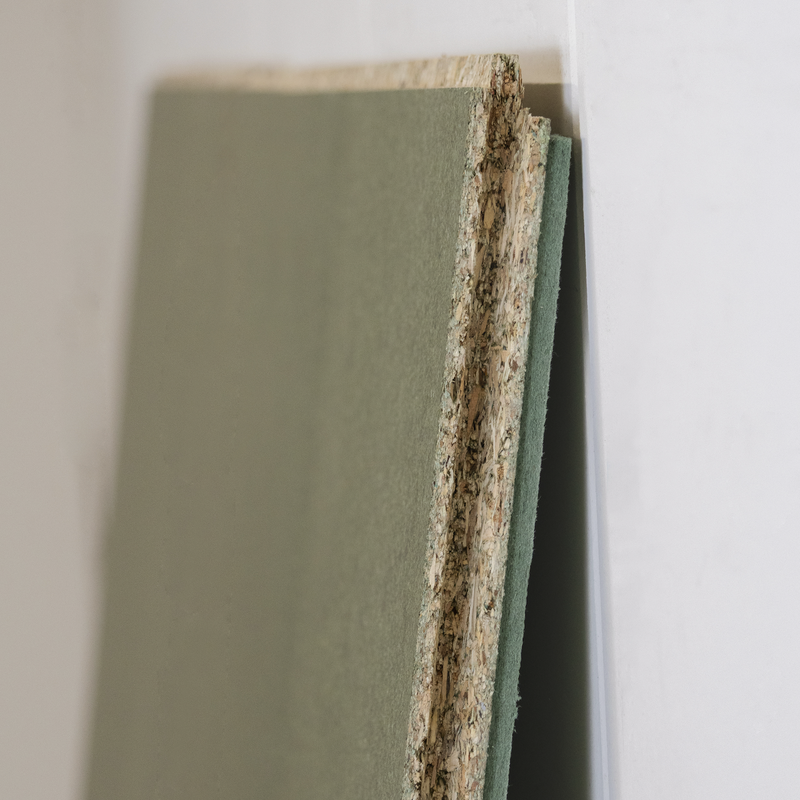

Redu-Panel Compact levels, stabilises and improves living comfort in one system. Specially developed for wooden subfloors in renovation and new-build projects, this underlay provides a fast and efficient solution without drying times or heavy floor constructions. The system consists of an 18 mm P5 moisture-resistant chipboard panel combined with a 7 mm softboard layer. Together, these layers create a stable, level base that is immediately ready for the next stage of floor installation. The compact 1200 x 600 mm format and low weight of just 10.9 kg per panel make transport and handling easy, even in existing homes and apartments where space is limited. Thanks to the tapered tongue-and-groove joint, the panels only need to be bonded together. No screws are required, and immediately after installation the floor can be walked on and is ready for installation of the final floor covering.

Why choose Redu-Panel Compact?

• Levels and stabilises timber subfloors.
• Impact sound improvement of 16 dB ΔLw on a solid concrete subfloor and 8 dB ΔLw on a wooden subfloor.
• Lightweight and easy to handle.
• Can be walked on immediately after installation.

For additional impact sound reduction, Redu-Panel Compact can be combined with separate underlays such as Greenfloor or Cocofloor. For larger differences in level, the system can also be combined with EcoPearls. These can accommodate unevenness from a few millimetres up to approximately 60 mm, while EcoPearls Max can be used up to 200 mm, before the panels are installed.

Redu-Panel Compact is suitable for laminate, engineered wood, prefabricated tapis and solid wood flooring up to approximately 10 mm thick. For resilient floor coverings such as LVT or linoleum, Unifloor recommends a smooth, levelled base, for which a Jumpax system is often the most suitable solution.
